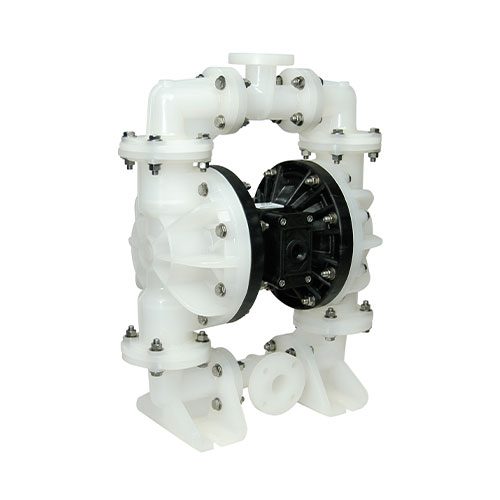

Sandpiper S

Double-diaphragm pumps operated by compressed air or natural gas. Suitable for general services, equipped with ball valves that allow the passage of solids up to 19 mm. Constructed from cast iron, stainless steel, aluminum, Hastelloy, polypropylene, or PVDF, with diaphragms and valves available in various elastomeric materials. Features the ESADS+ system, lubrication-free, allowing air valve access without dismantling the piping.

COMMON APPLICATIONS

● Containment pit drainage
● Sump drainage
● Brine pumping
● Slurry, paint, and other material pumping
sa

PRESSURE UP TO

8.6

bar

FLOW UP TO

63

m3/hr

TECHNICAL SHEET

PRESSURE UP TO

8.6

bar

FLOW UP TO

63

m3/hr

MATERIALES DE
CONSTRUCCIÓN

SPECS:

Design
Air valve
Passage of solids
Pneumatic pump
Lubrication-free and non-blocking design
Up to 19mm
Sizes
Elastomer material (diaphragm, valves and seats)
Pneumatic body material
25 mm - 76 mm
PTFE, santroprene, neoprene, FKM
Aluminum or cast iron
Hydraulic valve
Hydraulic body material
Balls
Cast iron, stainless steel, aluminum, Hastelloy, polypropylene or PVDF
Design
Pneumatic pump
Sizes
25 mm - 76 mm
Hydraulic valve
Balls
Air valve
Lubrication-free and non-blocking design
Elastomer material (diaphragm, valves and seats)
PTFE, santroprene, neoprene, FKM
Hydraulic body material
Cast iron, stainless steel, aluminum, Hastelloy, polypropylene or PVDF
Passage of solids
Up to 19mm
Pneumatic body material
Aluminum or cast iron
